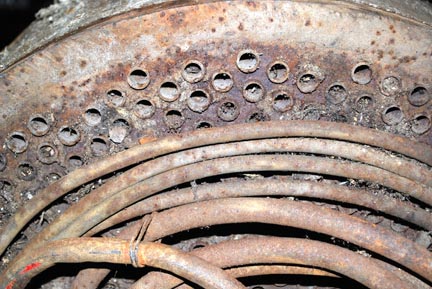

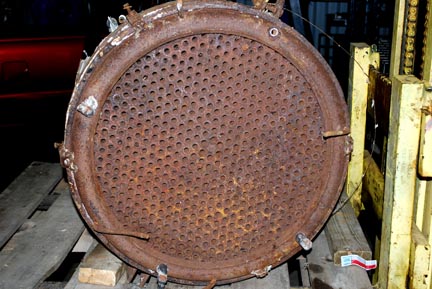

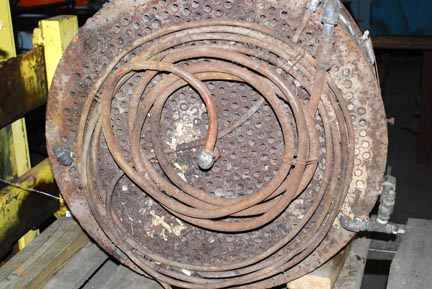

| This was made at the end of the Stanley steam automobile era sometime in the 1925 era. It can be identified because the boiler is of larger diameter than the burner, hence a ring that is necked down so the boiler will fit on top of a smaller burner. It was stored in a garage for years in a 1930’s era automobile converted to steam. This is rusted some, but a good example of the construction and design of a traditional fire tube Stanley boiler wire wound. |
|
 |
 |
|
(Note: Click on a picture for a larger view, then your browser can enlarge it further.) |
| |
| The SV (Steam Vehicle) burner is distinctive in that it has one mixing tube/venture feeding vaporized fuel and air under the burner. |
| |
|
 |
| |
