Graeme Vagg
Rotary Valve Steam Engine

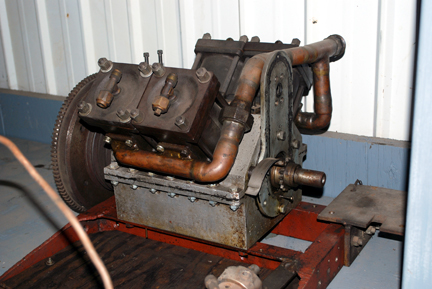

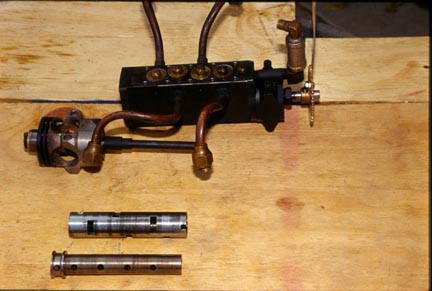

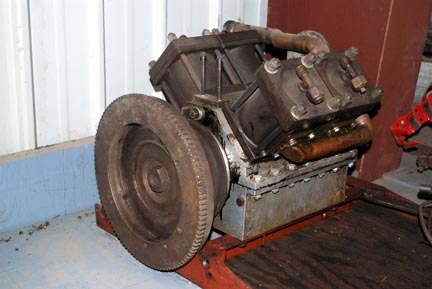

 A Graeme Vagg rotary valve from a V-4 steam engine of his design that used air cooled VW connecting rods and pistons and flat crank. This engine was self starting in a 90 degree V-4 configuration. The rotary valve gave complete cutoff control forwards and in reverse |
 |
 |
(Note: Click on a picture to see a larger view and then use your browser to enlarge it further.) |
|
 |
||

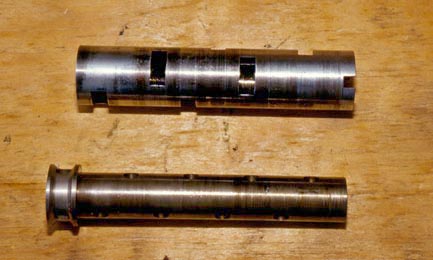

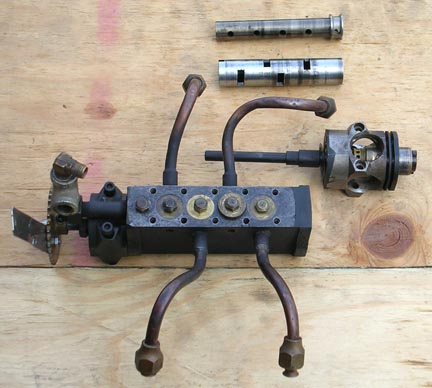

| The rotary valve is either identical to the Richard Smith rotary valve or very similar. Vagg and Smith were in the Southern California area at the same time. When Graeme Vagg was asked if the valve ports were a little small for good power, he commented that he was aiming at good economy and efficiency and not maximum power. It was a very clever design. | ||
|
 |
