Locomobile Engine and
Castings Set and Patterns for Vehicle



Engine

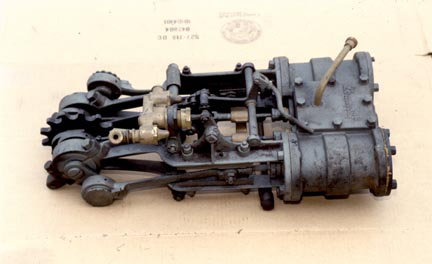

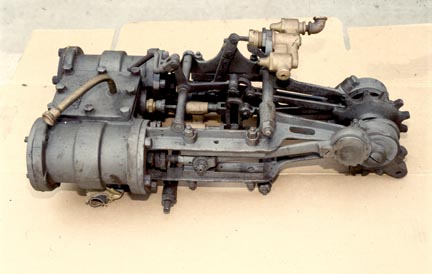

This engine was deaccessioned by the Crawford Museum, University Circle, Cleveland, Ohio.  It has over-hung cranks and one of the crank pins and the connecting rod is bent, probably due to a slug of water getting into the engine while it was running.  Double acting with 2 ½ inch bores and 3 ½ inch strokes.  This model has Locomobile in script cast into the steam chest cover.  There is a reinforcing band over the middle of the cylinder locomobile insignia   Locomobile Engine
wherethere arethe highest forces.   This old fashioned standard design was very inefficient and unbalanced due to the 90 degree cranks.  However, it was self starting and simple to make.
    Locomobile Engine


Locomobile Casting Set for Vehicle, Originally from New Zealand

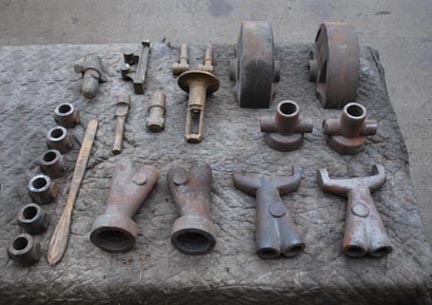

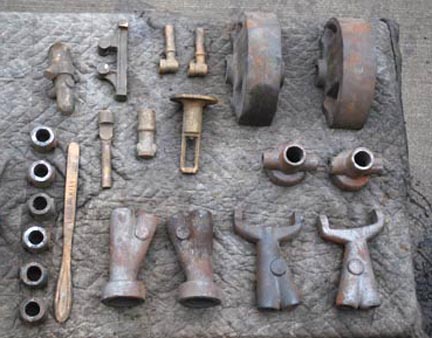

Locomobile Casting set-from New Zealand   Locomobile Casting set-from New Zealand



Harry Hibler's Locomobile Patterns

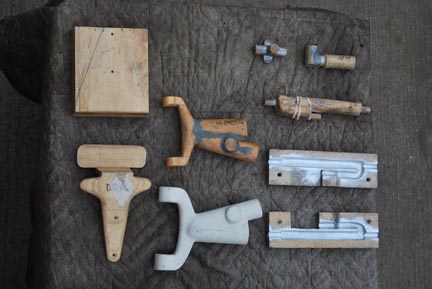

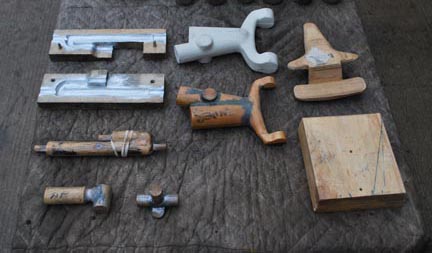

Harry Hibler's Locomobile Patterns   Harry Hibler's Locomobile Patterns
