Day-Land Engine
JimTangeman's Day-Land Castings

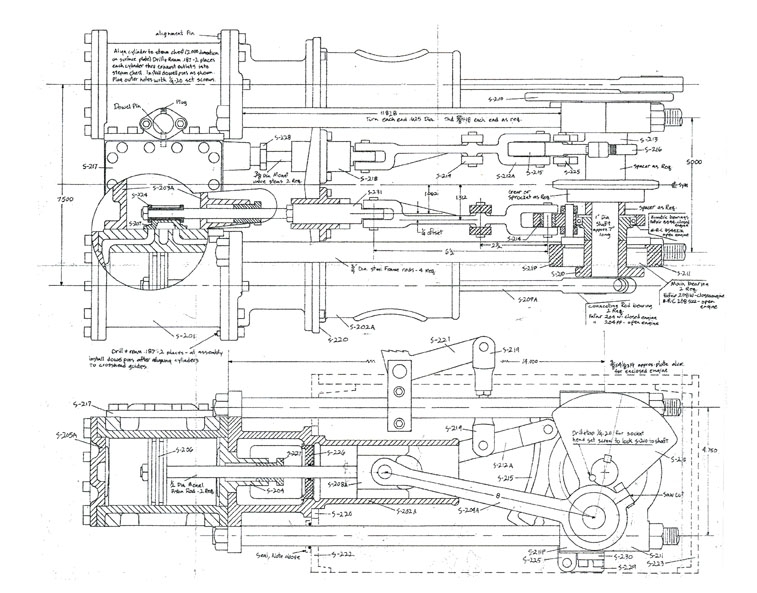

4 New Photos Below Drawing plus 4 of Jim Tangeman's Castings

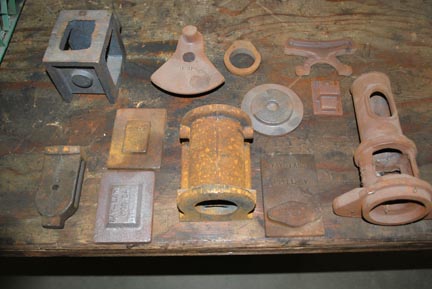

Day-Land engine. This was designed by two fellows in the Los Angeles area who made the patterns and then sold castings. It was to be a replacement of the Locomobile 2 x 3 engine using modern sealed bearings and materials. Originally it used the Clarkson donut intake valve that was |
|
 |
balanced so that there would be less wear on the valve faces. There were some inefficiencies in this design because the cool exhaust steam cooled down the metal where the hot intake steam came in. The patterns were sold to a steam fellow in British Columbia but at this time no castings are being made from them. (Note: Click on a picture to see a larger view and then use your browser to enlarge it further.) |
||
 |
|
|
C. William Moore on the Day-Land Engine (Overview, Specifications, Photo's and Price List.) |
 |
| The engine was developed by Arnie Land and Ralph Day and castings were sold by Land’s son-in-law Bill Moore, brother of the late Dick Moore from La Verne, California. The specifications were 2 ½” Bore x 3 ½” Stroke, two cylinder double acting. It will develop 20 hp at 600 psi operating at 1000-1200 rpm. At the present time someone in Delaware and someone in the United Kingdom are developing patterns. |
 |
 |
|
 |
 |
 |
 |
|
|

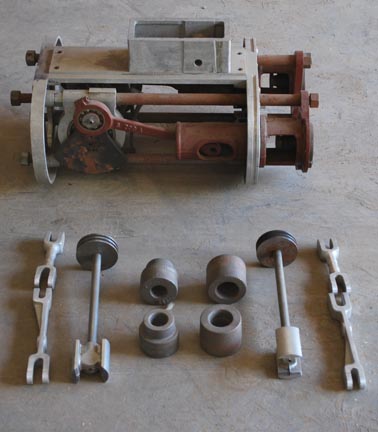

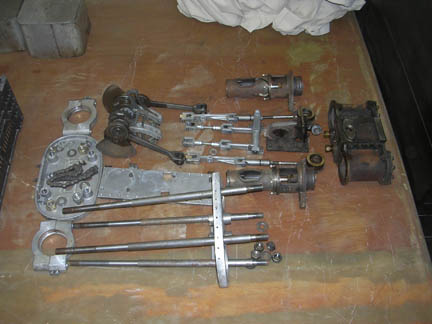

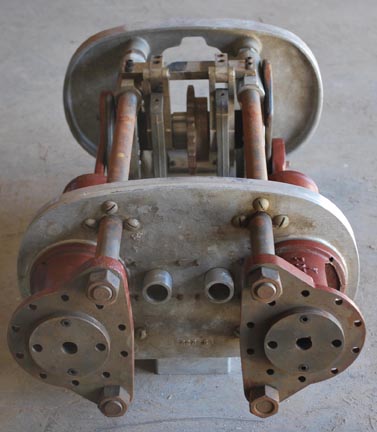

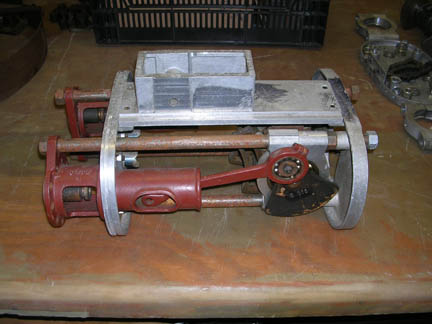

Partially completed Day-Land engine with some aluminum castings. | |
 |

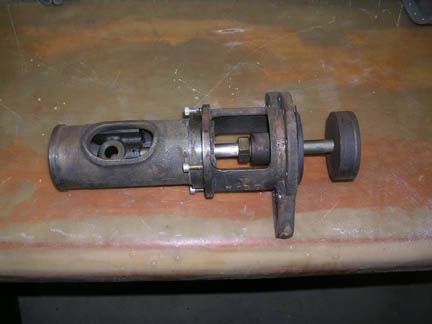

Day-Land engine, 20 hp at 600 psi and in the 1000-1200 rpm range. This has two cylinders, double-acting, simple expansion, 2 ½” bore and 3 ½” stroke with either a D-slide or a Clarkson Donut valve. Co-developers were Arnie Land and Ralph Day. | |

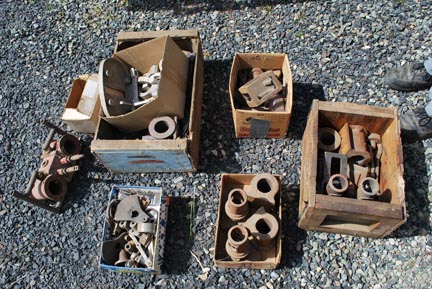

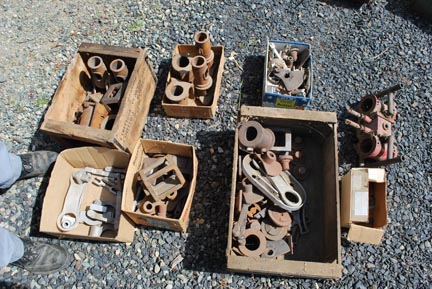

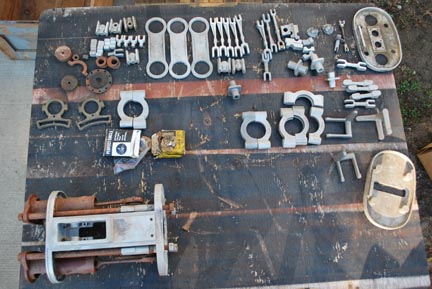

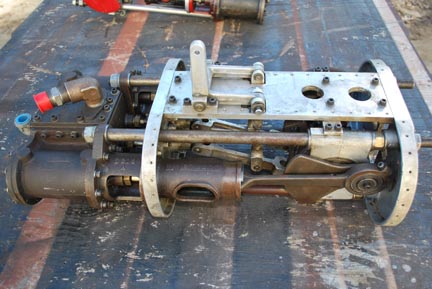

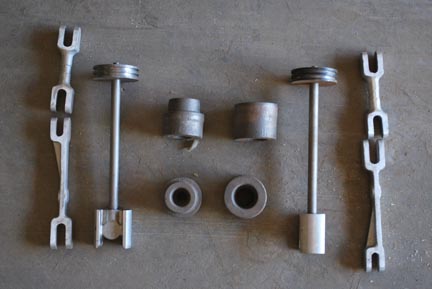

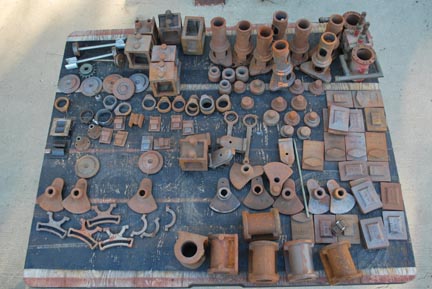

Jim Tangeman's Day-Land Castings
|
|||
(Note: Click on a picture to see a larger view and then use your browser to enlarge it further.) |
|||
 |
 |
||
Jim Tangeman with the Day-Land Castings |
|||
 |
 |
||
